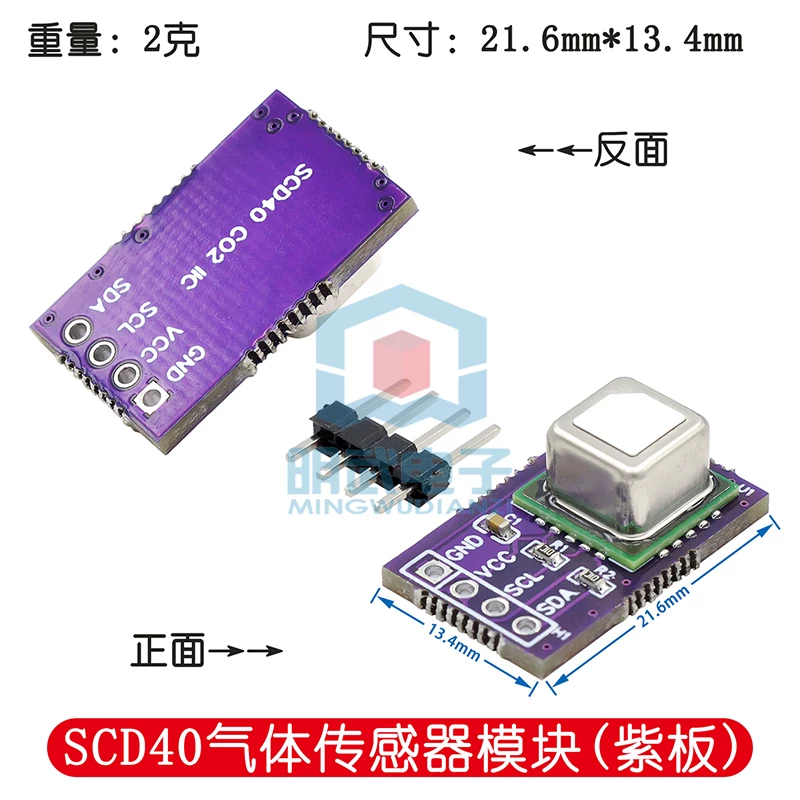

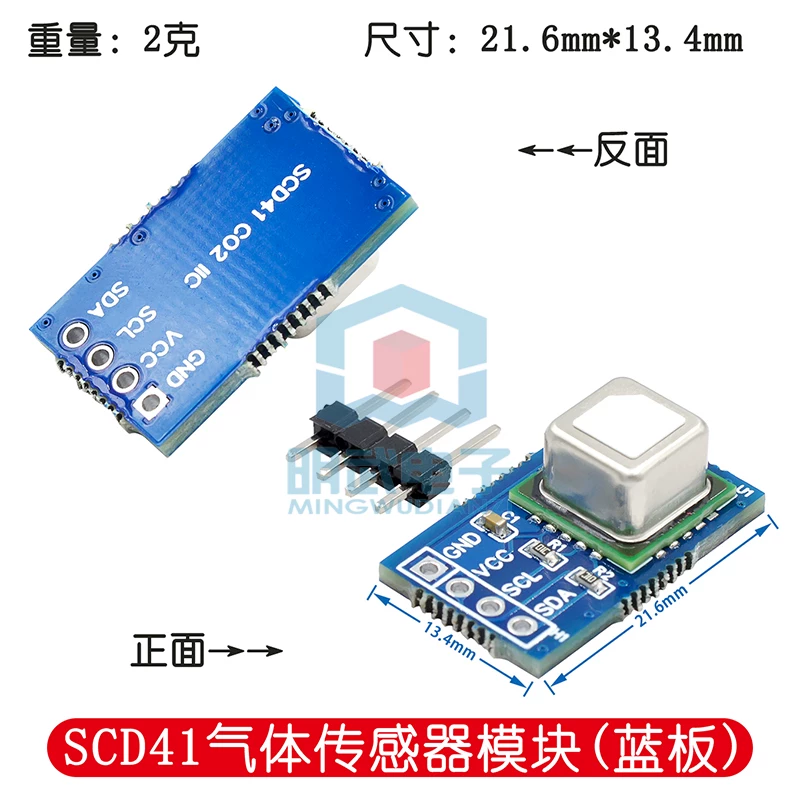

SCD41 蓝板 · SCD40 紫板
CO2 传感器模块接线与代码

/*
  ESP32-2432S028R(2.8寸黄屏CYD) + SCD41 CO2传感器 触摸UI演示（中文版）

  接线：模块 VCC->3.3V，GND->GND，SDA->IO27，SCL->IO22
       (跟 0911 ATECC608A / BMM150 / DPS310 项目同一路 CN1 I2C排针)
       ⚠ 别照抄资料网页上那份通用ESP32例程的 SDA=GPIO21——CYD板上21是屏幕背光
         (TFT_BL=21)，接SDA会跟背光打架。
  屏幕/触摸引脚沿用 02_中文触摸效率时钟、0911 ATECC608A 已验证过的配置。
  中文字体用 U8g2_for_TFT_eSPI + U8g2自带的文泉驿点阵字体(wqy16/wqy12)，
  不用额外生成字库文件，字库数据直接编译进固件。

  交互：
    - 单击：翻页（实时读数 -> CO2趋势 -> 芯片信息 -> 温度说明 -> 回实时读数）
    - 长按2秒：重新扫描传感器（软复位）
      (这里用2秒不用0911那边的5秒：0911的5秒是为了防止手滑触发Lock这种不可逆操作，
       SCD41这个UI里没有任何不可逆动作，用2秒手感更顺。)

  ⚠ 本演示刻意不包含以下两类命令，要加得先单独评估：
     · persist_settings (0x3615) —— 把温度偏移/海拔/ASC开关写进芯片EEPROM。
       官方datasheet只保证EEPROM约2000次擦写寿命，演示程序反复调用会折寿。
       (这些设置默认只存在RAM，掉电回默认值，不发这条不会写EEPROM。)
     · perform_forced_recalibration (0x362F) —— 强制重校准，改写校准基准，
       影响之后所有读数，且要在已知CO2浓度的环境里做才有意义。
*/

#include <SPI.h>
#include <TFT_eSPI.h>
#include <U8g2_for_TFT_eSPI.h>
#include <Wire.h>

#define I2C_SDA 27
#define I2C_SCL 22

#define TOUCH_CS  33
#define TOUCH_IRQ 36

#define HOLD_MS 2000UL

#define SCREEN_W 320
#define SCREEN_H 240

#define COL_BG      TFT_BLACK
#define COL_TEXT    TFT_WHITE
#define COL_DIM     TFT_DARKGREY
#define COL_OK      TFT_GREEN
#define COL_WARN    TFT_RED
#define COL_ACCENT  TFT_YELLOW
#define COL_ORANGE  0xFD20
#define COL_CYAN    TFT_CYAN
#define COL_BAR_BG  0x2104   // 深灰

TFT_eSPI tft = TFT_eSPI();
U8g2_for_TFT_eSPI u8f;

// ---------------- SCD4x 命令与底层读写 ----------------
static const uint8_t SCD4X_ADDR = 0x62;

static const uint16_t CMD_STOP_PERIODIC  = 0x3F86;
static const uint16_t CMD_GET_SERIAL     = 0x3682;
static const uint16_t CMD_GET_VARIANT    = 0x202F;
static const uint16_t CMD_SINGLE_SHOT    = 0x219D;   // 仅SCD41支持
static const uint16_t CMD_START_PERIODIC = 0x21B1;
static const uint16_t CMD_READ_MEASURE   = 0xEC05;
static const uint16_t CMD_DATA_READY     = 0xE4B8;

/* Sensirion CRC-8：多项式0x31，初始值0xFF。每2字节数据跟1字节CRC。 */
static uint8_t sensirionCrc(const uint8_t *data, uint8_t len) {
  uint8_t crc = 0xFF;
  for (uint8_t i = 0; i < len; i++) {
    crc ^= data[i];
    for (uint8_t b = 0; b < 8; b++) {
      crc = (crc & 0x80) ? (uint8_t)((crc << 1) ^ 0x31) : (uint8_t)(crc << 1);
    }
  }
  return crc;
}

static uint8_t sendCmd(uint16_t cmd) {
  Wire.beginTransmission(SCD4X_ADDR);
  Wire.write((uint8_t)(cmd >> 8));
  Wire.write((uint8_t)(cmd & 0xFF));
  return Wire.endTransmission();
}

static bool readWords(uint16_t *out, uint8_t count) {
  uint8_t need = count * 3;
  if (Wire.requestFrom((int)SCD4X_ADDR, (int)need) != need) return false;
  for (uint8_t i = 0; i < count; i++) {
    uint8_t b[2];
    b[0] = Wire.read();
    b[1] = Wire.read();
    uint8_t c = Wire.read();
    if (sensirionCrc(b, 2) != c) return false;
    out[i] = ((uint16_t)b[0] << 8) | b[1];
  }
  return true;
}

// ---------------- 应用状态 ----------------
enum AppState {
  STATE_DETECT,
  STATE_ERROR,
  STATE_LIVE,     // 实时读数（主页）
  STATE_TREND,    // CO2趋势条形图
  STATE_INFO,     // 芯片信息
  STATE_ABOUT,    // 温度偏移/自发热说明
};

static AppState state = STATE_DETECT;

static String serialNumberStr = "-";
static String variantStr      = "SCD4x";
static bool   singleShotOk    = false;   // measure_single_shot是否被接受(SCD41判据)

static uint16_t co2Ppm   = 0;
static float    tempC    = 0.0f;
static float    humidity = 0.0f;
static bool     haveData = false;

// CO2历史，趋势页用。5秒一个点，60个点约5分钟。
#define HIST_N 60
static uint16_t hist[HIST_N];
static uint8_t  histCount = 0;
static uint8_t  histHead  = 0;

static void histPush(uint16_t v) {
  hist[histHead] = v;
  histHead = (histHead + 1) % HIST_N;
  if (histCount < HIST_N) histCount++;
}

/* 取第i个历史点，i=0是最旧的 */
static uint16_t histAt(uint8_t i) {
  uint8_t start = (uint8_t)((histHead + HIST_N - histCount) % HIST_N);
  return hist[(start + i) % HIST_N];
}

// ---------------- 空气质量分级 ----------------
// 室内CO2常用参考档位：户外空气约400ppm，室内长期高于1000ppm就该通风了。
static const char *qualityText(uint16_t ppm) {
  if (ppm < 600)  return "优 · 空气清新";
  if (ppm < 800)  return "良 · 正常室内";
  if (ppm < 1000) return "一般 · 建议通风";
  if (ppm < 1500) return "偏差 · 该开窗了";
  if (ppm < 2000) return "差 · 明显闷";
  return "很差 · 尽快通风";
}

static uint16_t qualityColor(uint16_t ppm) {
  if (ppm < 800)  return COL_OK;
  if (ppm < 1000) return COL_ACCENT;
  if (ppm < 1500) return COL_ORANGE;
  return COL_WARN;
}

// ---------------- 触摸：只用IRQ判断"有没有摁下"，不做坐标映射 ----------------
// XPT2046在CS拉低期间，只要屏幕被摁着PENIRQ就一直是低电平——够用来做
// "单击/长按"这种不需要具体坐标的交互，省掉坐标标定(跟0911项目同一思路)。
static void touchInit() {
  pinMode(TOUCH_CS, OUTPUT);
  digitalWrite(TOUCH_CS, LOW);
  pinMode(TOUCH_IRQ, INPUT);
}

static bool isTouchedNow() {
  return digitalRead(TOUCH_IRQ) == LOW;
}

// ---------------- 绘制小工具 ----------------
static int cursorY;
static void resetCursor(int y) { cursorY = y; }
static void setPrimaryFont()   { u8f.setFont(u8g2_font_wqy16_t_gb2312); }   // 16px
static void setSecondaryFont() { u8f.setFont(u8g2_font_wqy12_t_gb2312); }   // 12px

static void drawHeader(const char *title, uint16_t color) {
  tft.fillScreen(COL_BG);
  u8f.setForegroundColor(color);
  setPrimaryFont();
  u8f.drawUTF8(12, 26, title);
  tft.drawFastHLine(0, 34, SCREEN_W, COL_DIM);
  resetCursor(56);
}

// tier: 2=正文(16px)，1=小字提示(12px)
static void printLine(const String &text, uint16_t color, uint8_t tier = 2) {
  u8f.setForegroundColor(color);
  if (tier >= 2) setPrimaryFont(); else setSecondaryFont();
  u8f.drawUTF8(12, cursorY, text.c_str());
  cursorY += (tier >= 2) ? 24 : 18;
}

static void printGap(int px) { cursorY += px; }

static void drawFooterHint(const char *text) {
  u8f.setForegroundColor(COL_DIM);
  setSecondaryFont();
  u8f.drawUTF8(12, SCREEN_H - 8, text);
}

static void drawProgressBar(uint32_t elapsedMs) {
  const int x = 12, y = SCREEN_H - 30, w = SCREEN_W - 24, h = 10;
  uint32_t clamped = elapsedMs > HOLD_MS ? HOLD_MS : elapsedMs;
  int fillW = (int)((uint32_t)w * clamped / HOLD_MS);
  tft.fillRect(x, y, w, h, COL_BAR_BG);
  if (fillW > 0) tft.fillRect(x, y, fillW, h, COL_ACCENT);
  tft.drawRect(x, y, w, h, COL_DIM);
}

// ---------------- 各页面 ----------------
static void renderDetectPage() {
  drawHeader("检测中...", COL_TEXT);
  printLine("正在查找 SCD41", COL_TEXT);
}

static void renderErrorPage() {
  drawHeader("未找到传感器", COL_WARN);
  printLine("请检查接线：", COL_TEXT);
  printLine("SDA=IO27  SCL=IO22", COL_TEXT);
  printLine("VCC=3.3V  地址=0x62", COL_TEXT);
  printGap(6);
  printLine("VCC不要接5V，会打坏IO", COL_ACCENT, 1);
  drawFooterHint("长按2秒重新扫描");
}

/* 实时读数页：只重画数值区，避免整屏刷新闪烁 */
static void renderLiveStatic() {
  drawHeader("实时读数", COL_CYAN);
  drawFooterHint("轻触：翻页    长按2秒：重新扫描");
}

static void renderLiveValues() {
  // 清掉数值区(标题线以下、底部提示以上)
  tft.fillRect(0, 38, SCREEN_W, SCREEN_H - 38 - 22, COL_BG);

  if (!haveData) {
    u8f.setForegroundColor(COL_DIM);
    setPrimaryFont();
    u8f.drawUTF8(12, 80, "等待第一组数据...");
    u8f.setForegroundColor(COL_DIM);
    setSecondaryFont();
    u8f.drawUTF8(12, 104, "周期测量每5秒出一次");
    return;
  }

  uint16_t qc = qualityColor(co2Ppm);

  // 大字CO2数值：用TFT_eSPI内置7段字体(font 7)，比点阵字体大得多，隔着镜头也看得清
  tft.setTextColor(qc, COL_BG);
  tft.setTextDatum(TL_DATUM);
  tft.drawNumber(co2Ppm, 14, 46, 7);

  // ppm单位 + CO2标签
  u8f.setForegroundColor(COL_TEXT);
  setPrimaryFont();
  u8f.drawUTF8(200, 88, "ppm");
  u8f.setForegroundColor(COL_DIM);
  setSecondaryFont();
  u8f.drawUTF8(200, 60, "CO2 二氧化碳");

  // 空气质量条
  const int barX = 12, barY = 104, barW = SCREEN_W - 24, barH = 12;
  // 400ppm(户外)~2000ppm 映射成整条
  int v = (int)co2Ppm - 400;
  if (v < 0) v = 0;
  int fill = (int)((long)barW * v / 1600);
  if (fill > barW) fill = barW;
  tft.fillRect(barX, barY, barW, barH, COL_BAR_BG);
  if (fill > 0) tft.fillRect(barX, barY, fill, barH, qc);
  tft.drawRect(barX, barY, barW, barH, COL_DIM);

  u8f.setForegroundColor(qc);
  setPrimaryFont();
  u8f.drawUTF8(12, 142, qualityText(co2Ppm));

  // 温湿度
  char buf[48];
  u8f.setForegroundColor(COL_TEXT);
  setPrimaryFont();
  snprintf(buf, sizeof(buf), "温度 %.1f C", tempC);
  u8f.drawUTF8(12, 172, buf);
  snprintf(buf, sizeof(buf), "湿度 %.1f %%", humidity);
  u8f.drawUTF8(170, 172, buf);

  u8f.setForegroundColor(COL_DIM);
  setSecondaryFont();
  u8f.drawUTF8(12, 192, "温度含自发热，偏高属正常，见第4页");
}

static void renderTrendPage() {
  drawHeader("CO2 趋势 (近5分钟)", COL_CYAN);

  const int gx = 12, gy = 46, gw = SCREEN_W - 24, gh = 130;
  tft.drawRect(gx, gy, gw, gh, COL_DIM);

  if (histCount < 2) {
    u8f.setForegroundColor(COL_DIM);
    setPrimaryFont();
    u8f.drawUTF8(gx + 10, gy + 60, "数据还不够，等几个周期");
    drawFooterHint("轻触：翻页    长按2秒：重新扫描");
    return;
  }

  // 纵轴范围：跟着数据自适应，但至少留400~1000这个基本区间
  uint16_t lo = 65535, hi = 0;
  for (uint8_t i = 0; i < histCount; i++) {
    uint16_t v = histAt(i);
    if (v < lo) lo = v;
    if (v > hi) hi = v;
  }
  if (lo > 400) lo = 400;
  if (hi < 1000) hi = 1000;
  uint16_t span = (uint16_t)(hi - lo);
  if (span < 100) span = 100;

  // 1000ppm参考线（室内建议通风的常用门槛）
  int refY = gy + gh - (int)((long)gh * (1000 - lo) / span);
  if (refY > gy && refY < gy + gh) {
    for (int x = gx + 2; x < gx + gw - 2; x += 6) {
      tft.drawPixel(x, refY, COL_ACCENT);
    }
    u8f.setForegroundColor(COL_ACCENT);
    setSecondaryFont();
    u8f.drawUTF8(gx + gw - 46, refY - 3, "1000");
  }

  // 条形图：每个历史点一根竖条
  int barW = gw / HIST_N;
  if (barW < 1) barW = 1;
  for (uint8_t i = 0; i < histCount; i++) {
    uint16_t v = histAt(i);
    int h = (int)((long)(gh - 4) * (v - lo) / span);
    if (h < 1) h = 1;
    if (h > gh - 4) h = gh - 4;
    int x = gx + 2 + i * barW;
    tft.fillRect(x, gy + gh - 2 - h, barW > 1 ? barW - 1 : 1, h, qualityColor(v));
  }

  char buf[48];
  u8f.setForegroundColor(COL_DIM);
  setSecondaryFont();
  snprintf(buf, sizeof(buf), "最低 %u    最高 %u    共 %u 个点", lo, hi, histCount);
  u8f.drawUTF8(12, gy + gh + 16, buf);

  drawFooterHint("轻触：翻页    长按2秒：重新扫描");
}

static void renderInfoPage() {
  drawHeader("传感器信息", COL_OK);
  printLine("型号：" + variantStr, COL_TEXT);
  printLine("序列号：", COL_DIM, 1);
  printLine(serialNumberStr, COL_TEXT);
  printGap(4);
  printLine("地址 0x62   I2C 100kHz", COL_TEXT, 1);
  printGap(4);
  if (singleShotOk) {
    printLine("单次测量命令：支持", COL_OK, 1);
    printLine("-> 判定为 SCD41", COL_OK, 1);
  } else {
    printLine("单次测量命令：不支持", COL_WARN, 1);
    printLine("-> 判定为 SCD40", COL_WARN, 1);
  }
  drawFooterHint("轻触：翻页    长按2秒：重新扫描");
}

static void renderAboutPage() {
  drawHeader("温度为什么偏高？", COL_ACCENT);
  printLine("芯片自己会发热，测到的", COL_TEXT, 1);
  printLine("温度比环境高，官方默认", COL_TEXT, 1);
  printLine("扣掉4度作为温度偏移。", COL_TEXT, 1);
  printGap(6);
  printLine("装进外壳后热量更散不掉，", COL_TEXT, 1);
  printLine("偏移值要按实际情况重调。", COL_TEXT, 1);
  printGap(6);
  printLine("本演示不写EEPROM：", COL_ACCENT, 1);
  printLine("温度偏移/海拔/自校准开关", COL_DIM, 1);
  printLine("默认只存RAM，掉电就回默认，", COL_DIM, 1);
  printLine("不发persist_settings不烧写。", COL_DIM, 1);
  drawFooterHint("轻触：回实时读数    长按2秒：重新扫描");
}

static void renderCurrentState() {
  switch (state) {
    case STATE_DETECT: renderDetectPage(); break;
    case STATE_ERROR:  renderErrorPage(); break;
    case STATE_LIVE:   renderLiveStatic(); renderLiveValues(); break;
    case STATE_TREND:  renderTrendPage(); break;
    case STATE_INFO:   renderInfoPage(); break;
    case STATE_ABOUT:  renderAboutPage(); break;
  }
}

// ---------------- 触摸事件 -> 状态机 ----------------
static void onShortTap() {
  switch (state) {
    case STATE_LIVE:  state = STATE_TREND; renderCurrentState(); break;
    case STATE_TREND: state = STATE_INFO;  renderCurrentState(); break;
    case STATE_INFO:  state = STATE_ABOUT; renderCurrentState(); break;
    case STATE_ABOUT: state = STATE_LIVE;  renderCurrentState(); break;
    default: break;   // 错误页只能长按重试
  }
}

static void onLongPressComplete() {
  ESP.restart();
}

// ---------------- 传感器初始化 ----------------
static bool sensorInit() {
  Wire.beginTransmission(SCD4X_ADDR);
  if (Wire.endTransmission() != 0) return false;

  // 上电后可能还在跑周期测量，不停下来后面的命令会被忽略
  sendCmd(CMD_STOP_PERIODIC);
  delay(500);

  uint16_t sn[3];
  if (sendCmd(CMD_GET_SERIAL) == 0) {
    delay(5);
    if (readWords(sn, 3)) {
      char buf[16];
      snprintf(buf, sizeof(buf), "%04X%04X%04X", sn[0], sn[1], sn[2]);
      serialNumberStr = String(buf);
    }
  }

  // 方法A：变体寄存器(新固件才有)
  if (sendCmd(CMD_GET_VARIANT) == 0) {
    delay(5);
    uint16_t v;
    if (readWords(&v, 1)) {
      uint8_t variant = (uint8_t)((v >> 12) & 0x0F);
      if (variant == 0)      variantStr = "SCD40";
      else if (variant == 1) variantStr = "SCD41";
    }
  }

  // 方法B：单次测量命令，只有SCD41支持——关键判据
  if (sendCmd(CMD_SINGLE_SHOT) == 0) {
    delay(5000);
    uint16_t raw[3];
    if (sendCmd(CMD_READ_MEASURE) == 0) {
      delay(2);
      if (readWords(raw, 3) && raw[0] != 0) {
        singleShotOk = true;
        variantStr = "SCD41";
      }
    }
  }

  if (sendCmd(CMD_START_PERIODIC) != 0) return false;
  return true;
}

/* 有新数据就取一组，没有就直接返回。5秒出一次。 */
static bool sensorPoll() {
  uint16_t ready = 0;
  if (sendCmd(CMD_DATA_READY) != 0) return false;
  delay(2);
  if (!readWords(&ready, 1)) return false;
  if ((ready & 0x07FF) == 0) return false;   // 低11位为0=还没准备好

  if (sendCmd(CMD_READ_MEASURE) != 0) return false;
  delay(2);
  uint16_t raw[3];
  if (!readWords(raw, 3)) return false;
  if (raw[0] == 0) return false;

  co2Ppm   = raw[0];
  tempC    = -45.0f + 175.0f * (float)raw[1] / 65535.0f;
  humidity = 100.0f * (float)raw[2] / 65535.0f;
  haveData = true;
  histPush(co2Ppm);

  Serial.printf("CO2: %u ppm\t温度: %.1f C\t湿度: %.1f %%RH\n",
                co2Ppm, tempC, humidity);
  return true;
}

void setup() {
  Serial.begin(115200);
  delay(300);

  tft.init();
  tft.setRotation(1);
  tft.fillScreen(COL_BG);

  u8f.begin(tft);
  u8f.setFontMode(1);       // 透明背景
  u8f.setFontDirection(0);

  touchInit();

  Wire.begin(I2C_SDA, I2C_SCL);
  Wire.setClock(100000);    // SCD4x建议100kHz，别拉到400kHz

  renderDetectPage();

  if (!sensorInit()) {
    Serial.println("SCD41 not found");
    state = STATE_ERROR;
    renderCurrentState();
    return;
  }

  Serial.print("S/N: ");     Serial.println(serialNumberStr);
  Serial.print("Variant: "); Serial.println(variantStr);

  state = STATE_LIVE;
  renderCurrentState();
}

void loop() {
  static uint32_t lastPoll = 0;
  static uint32_t lastSample = 0;
  static bool wasDown = false;
  static uint32_t pressStartMs = 0;
  static bool longFired = false;
  static uint32_t lastActionMs = 0;
  static uint8_t pollFailCount = 0;   // 连续几次sensorPoll()失败，用来判定"传感器被拔了"

  uint32_t now = millis();

  // 每5秒取一次传感器数据（周期测量的出数节奏）
  if (state != STATE_ERROR && state != STATE_DETECT && now - lastSample >= 5000) {
    lastSample = now;
    if (sensorPoll()) {
      pollFailCount = 0;
      // 只有当前停在会变的页面才重画，其它页面等翻回去时自然是新数据
      if (state == STATE_LIVE)  renderLiveValues();
      if (state == STATE_TREND) renderTrendPage();
    } else {
      // sensorPoll()失败原因有两种：①传感器拔掉了(I2C直接无应答)；②数据还没准备好
      // (正常现象，比如刚开机头几秒)。用连续失败次数区分，别偶尔一次没读到就误判：
      // 连续3次(约15秒，覆盖3个测量周期)都拿不到数据才真的当"传感器不在了"处理，
      // 不然刚好卡在数据未就绪的那一瞬间会被错误地判成"拔了"。
      // 之前这里什么都不做，画面就一直停在拔传感器前最后一次的旧读数上，看起来
      // 像"没传感器也在正常出数"——这是真实bug，不是设计如此。
      pollFailCount++;
      if (pollFailCount >= 3 && (state == STATE_LIVE || state == STATE_TREND ||
                                  state == STATE_INFO || state == STATE_ABOUT)) {
        haveData = false;
        state = STATE_ERROR;
        renderCurrentState();
      }
    }
  }

  if (now - lastPoll < 20) return;
  lastPoll = now;

  bool down = isTouchedNow();

  if (down && !wasDown) {
    pressStartMs = now;
    longFired = false;
  }

  if (down) {
    uint32_t held = now - pressStartMs;
    if (held > 300) drawProgressBar(held);   // 摁过300ms才显示进度条，避免单击闪一下
    if (!longFired && held >= HOLD_MS) {
      longFired = true;
      lastActionMs = now;
      onLongPressComplete();
    }
  }

  if (!down && wasDown) {
    if (!longFired && (now - lastActionMs > 250)) {
      lastActionMs = now;
      onShortTap();
    } else if (!longFired) {
      renderCurrentState();   // 抹掉没走完的进度条
    }
  }

  wasDown = down;
}
